CISCO EHWIC-VA-DSL-A
| Name: |
EHWIC-VA-DSL-A |
| Model: | EHWIC-VA-DSL-A Cisco EHWIC WAN Card |
| Detail: |

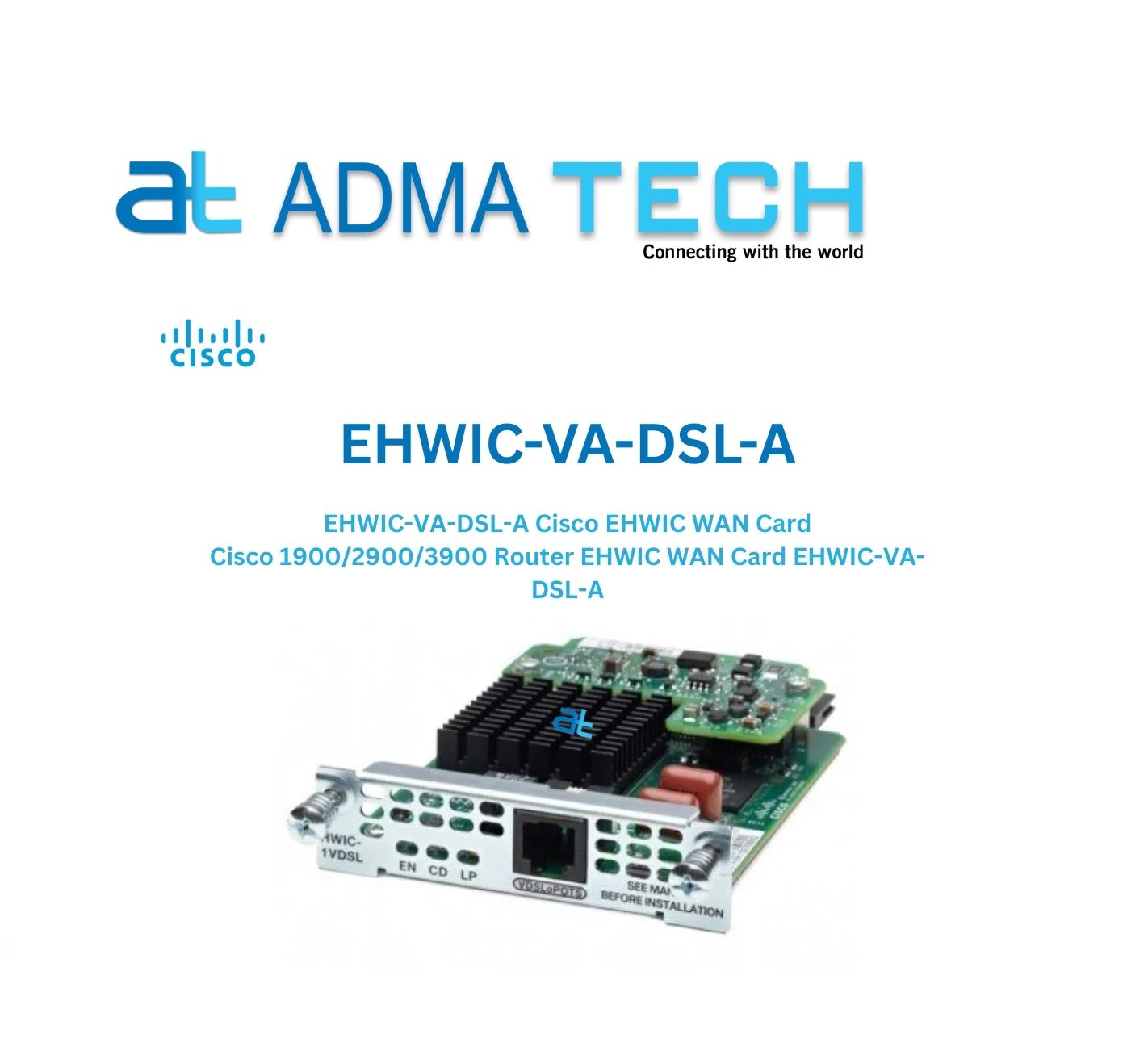

Cisco 1900/2900/3900 Router EHWIC WAN Card EHWIC-VA-DSL-A
|
| Condition: | Used A++ |
EHWIC-VA-DSL-A Overview
The Cisco Multimode EHWIC-VA-DSL-A High-Speed WAN Interface Card equips with 1 RJ-11 port to support multimode VDSL2 and ADSL2/2+ WAN connectivity over the plain old telephone service. This WAN interface module provides High-speed WAN connection between Central office and customer premises equipment. the capability enables service providers and resellers to offer additional services such as business-class security; voice, video, and data; differentiated classes of service (QoSs); and managed network access with Cisco IOS software over existing telephony infrastructure. This network module support entire Cisco ISR G2 router platform with Cisco IOS 15.1(3)T/15.1(4)M or later release.
Table shows the Quick Specs.
|
DSL Specifications |
|
|
Multimode DSL (VDSL2 and ADSL2/2+) |
● Broadcom chipset
● One RJ-11 VDSL2 interface
● Dying gasp
● IEEE 802.1q VLAN tagging
● Independent DSL firmware loading
VDSL2:
● ITU G.993.2 (VDSL2)
● 997 and 998 band plans
● VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a
● U0 band support (25 to 276 kHz)
● Ethernet packet transfer mode (PTM) based only on IEEE 802.3ah 64/65 octet encapsulation
● Support for double-ended line testing (DELT) diagnostics mode
● DSL Forum TR-067 compliance
● Support for downstream speeds up to 100 Mbps in Ethernet PTM and up to 50 Mbps upstream
ADSL2/2+:
● ADSL over POTS with Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)
● ADSL over POTS with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and G.992.5 (ADSL2+)
Cisco Multimode VDSL2 and ADSL2/2+ EHWIC (EHWIC-VA-DSL-M) is optimized for power spectrum density (PSD) mask EU-64 M9 Cisco Multimode VDSL2 and ADSL2/2+ EHWIC (EHWIC-VA-DSL-M) supports UK Annex M
● G.994.1 ITU G.hs
● Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000 feet from central office
● T1.413 ANSI ADSL DMT issue 2 compliance
● DSL Forum TR-067, and TR-100 conformity
● Impulse noise protection (INP) and extended INP
● Downstream power backoff (DPBO)
● Asynchronous transfer mode (ATM) only |
