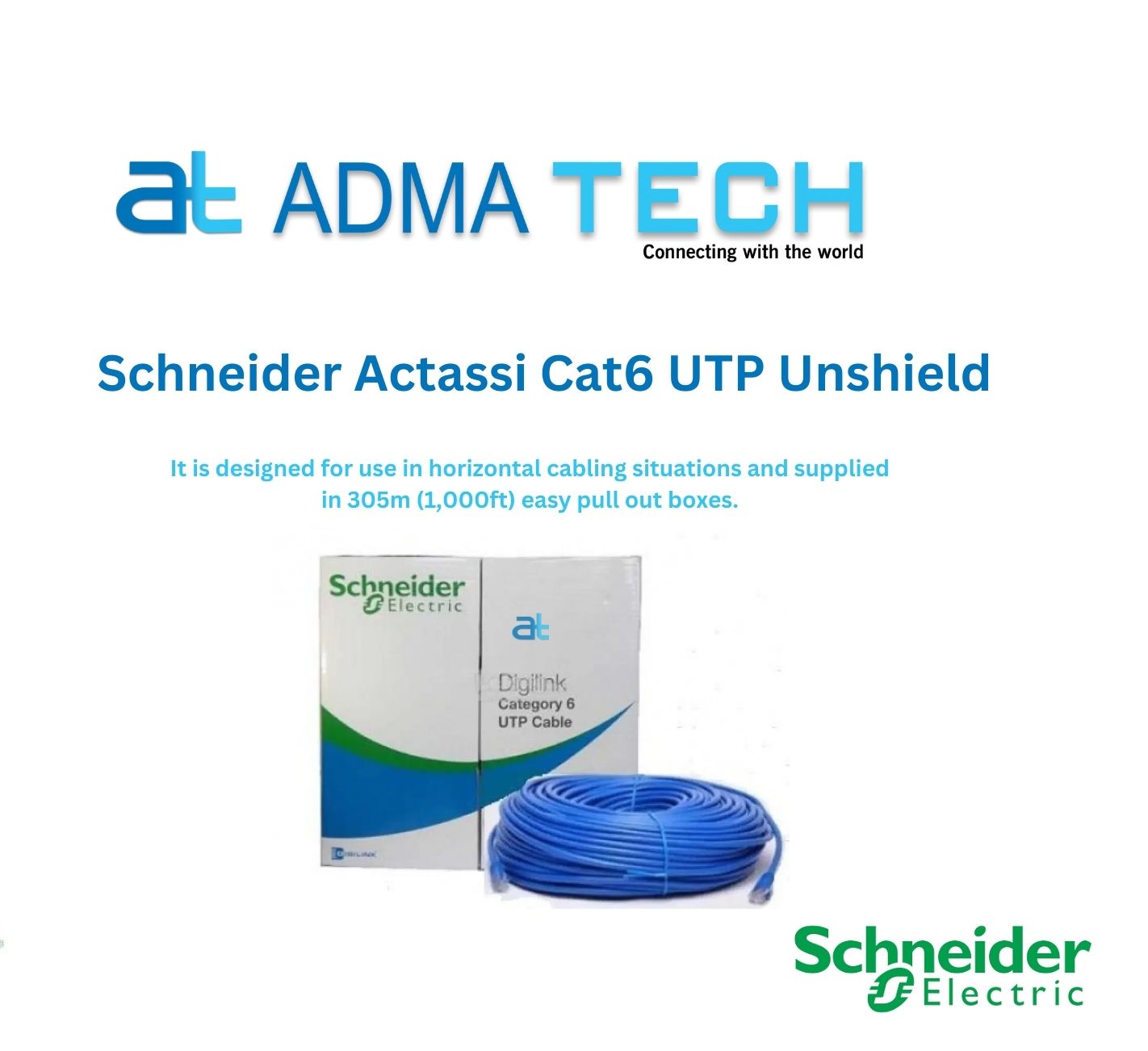

Schneider Actassi Cat6 UTP Unshield

Name: Schneider Actassi Cat6 UTP Unshield
Brand: Adma Tech
Availability: InStock

Rs.0.00

Quantity

WhatsApp Link

Order on WhatsApp

Compare

Ask a question

Size guide

Schneider Actassi Cat6 UTP Unshield

Rs.0.00

Schneider Actassi Cat6 UTP Unshield

Description

Schneider Actassi Cat6 UTP Roll, 305M Characteristics

Main

Range of product	Actassi
Product or component type	Copper cable

Complementary

Type of cable	4 pair cables
Cable shielding type	UTP
Communication network category	6
Flame retardance	CM
Return loss	20.1 dB, at 100 MHz 25 dB, at 20 MHz 21.5 dB, at 62.5 MHz 24.5 dB, at 8 MHz 25 dB, at 10 MHz 24.3 dB, at 25 MHz 23.6 dB, at 31.25 MHz 25 dB, at 16 MHz 23 dB, at 4 MHz 19.4 dB, at 0.772 MHz 20 dB, at 1 MHz
Attenuation	22 dB at 100 MHz, cable length 100 m 1.8 dB at 0.772 MHz, cable length 100 m 4.1 dB at 4 MHz, cable length 100 m 8.2 dB at 16 MHz, cable length 100 m 5.8 dB at 8 MHz, cable length 100 m 11.7 dB at 31.25 MHz, cable length 100 m 10.4 dB at 25 MHz, cable length 100 m 17 dB at 62.5 MHz, cable length 100 m 6.5 dB at 10 MHz, cable length 100 m 9.3 dB at 20 MHz, cable length 100 m 2 dB at 1 MHz, cable length 100 m
Attenuation to crosstalk ratio (ACR)	37 dB at 20 MHz 13 dB at 100 MHz 21 dB at 62.5 MHz 65 dB at 0.772 MHz 46 dB at 8 MHz 34 dB at 25 MHz 31 dB at 31.25 MHz 44 dB at 10 MHz 52 dB at 4 MHz 39 dB at 16 MHz 63 dB at 1 MHz
Power Sum Near End Crosstalk (PS NEXT)	35.4 dB at 62.5 MHz 32.3 dB at 100 MHz 42.8 dB at 20 MHz 62.3 dB at 1 MHz 53.3 dB at 4 MHz 64 dB at 0.772 MHz 39.9 dB at 31.25 MHz 47.3 dB at 10 MHz 44.3 dB at 16 MHz 48.8 dB at 8 MHz 41.3 dB at 25 MHz
Near end crosstalk	38.4 dB at 62.5 MHz 42.9 dB at 31.25 MHz 67 dB at 0.772 MHz 35.3 dB at 100 MHz 51.8 dB at 8 MHz 45.8 dB at 20 MHz 47.3 dB at 16 MHz 44.3 dB at 25 MHz 50.3 dB at 10 MHz 56.3 dB at 4 MHz 65.3 dB at 1 MHz
Input impedance	100 Ohm (+/- 6) at 1…100 MHz
Loop resistance	<= 73.2 Ohm/km
Capacitance unbalance	330 pF / 100 m
Resistance unbalance	5 %
Colour tint	Blue
Wire insulation material	ON
Material conductor	Solid bare copper
AWG gauge	AWG 23
Temperature resistance	75 °C
Product certifications	UL
Cable outer diameter	4.9 mm
Cable length	305 m

Environment

Standards

UL 444
ISO / IEC 11801
ANSI / TIA / EIA-568-B

Offer Sustainability

Sustainable offer status	Green Premium product
Product environmental profile	Available
Product end-of-life instructions	Need no specific recycling operations

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Search our store

Schneider Actassi Cat6 UTP Unshield

Ask a Question

Schneider Actassi Cat6 UTP Unshield

Description

Schneider Actassi Cat6 UTP Roll, 305M Characteristics

Type of cable

4 pair cables

Cable shielding type

UTP

Communication network category

6

Flame retardance

CM

Return loss

20.1 dB, at 100 MHz25 dB, at 20 MHz21.5 dB, at 62.5 MHz24.5 dB, at 8 MHz25 dB, at 10 MHz24.3 dB, at 25 MHz23.6 dB, at 31.25 MHz25 dB, at 16 MHz23 dB, at 4 MHz19.4 dB, at 0.772 MHz20 dB, at 1 MHz

Attenuation

Attenuation to crosstalk ratio (ACR)

37 dB at 20 MHz13 dB at 100 MHz21 dB at 62.5 MHz65 dB at 0.772 MHz46 dB at 8 MHz34 dB at 25 MHz31 dB at 31.25 MHz44 dB at 10 MHz52 dB at 4 MHz39 dB at 16 MHz63 dB at 1 MHz

Power Sum Near End Crosstalk (PS NEXT)

35.4 dB at 62.5 MHz32.3 dB at 100 MHz42.8 dB at 20 MHz62.3 dB at 1 MHz53.3 dB at 4 MHz64 dB at 0.772 MHz39.9 dB at 31.25 MHz47.3 dB at 10 MHz44.3 dB at 16 MHz48.8 dB at 8 MHz41.3 dB at 25 MHz

Near end crosstalk

38.4 dB at 62.5 MHz42.9 dB at 31.25 MHz67 dB at 0.772 MHz35.3 dB at 100 MHz51.8 dB at 8 MHz45.8 dB at 20 MHz47.3 dB at 16 MHz44.3 dB at 25 MHz50.3 dB at 10 MHz56.3 dB at 4 MHz65.3 dB at 1 MHz

Input impedance

100 Ohm (+/- 6) at 1…100 MHz

Loop resistance

<= 73.2 Ohm/km

Capacitance unbalance

330 pF / 100 m

Resistance unbalance

5 %

Colour tint

Blue

Wire insulation material

ON

Material conductor

Solid bare copper

AWG gauge

AWG 23

Temperature resistance

75 °C

Product certifications

UL

Cable outer diameter

4.9 mm

Cable length

305 m

Environment

Standards

UL 444ISO / IEC 11801ANSI / TIA / EIA-568-B

Offer Sustainability
